The latest in a long line of F-4 variants, the Terminators are a batch of Turkish Air Force F-4Es, modernized by Israel on the pattern of the Kurnass 2000. They differ from the existing F-4E airframe in a number of key areas, including new attachment fittings to better handle modern weaponry, stronger wing fold ribs, an updated canopy sill bar, and the replacement of some 20 km of wiring (reducing weight by 750 kg) as well as most hydraulic and pneumatic lines and hoses. A plan to increase the turn-rate and longitudinal stability of the Kurnass/Terminator derivatives through the installation of fuselage strakes over the engine inlets was abandoned after testing, and never saw installation on operational aircraft.
The most radical changes occurred in the avionics department. All 2020s have been fitted with vastly updated suite, including MFDs (multifunction displays) as standard, and incorporating a number of new technologies, such as the new Kaiser El-OP 976 wide-angle HUD and HOTAS system, high performance Elta EL/M-2032 ISAR-capable high-resolution SAR/GMTI (ground moving target indicator) multi-mode fire control radar (developed for the IAI Lavi), IAIC mission computer, new navigation equipment including GPS/INS connected to mapping mode, dual MIL-STD-1553B databus managing avionics package, Astronautics Central Air Data Computer, new UHF and IFF packages, airborne video tape recorder (AVTR), Elta EL/L-8222 active ECM pod, Mikes (Aselsan) AN/ALQ-178V3 passive embedded SPEWS, and RWR.

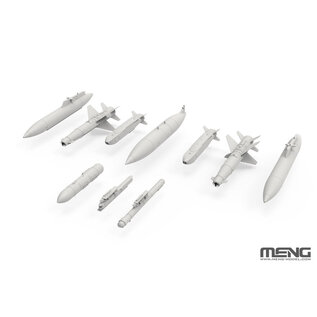

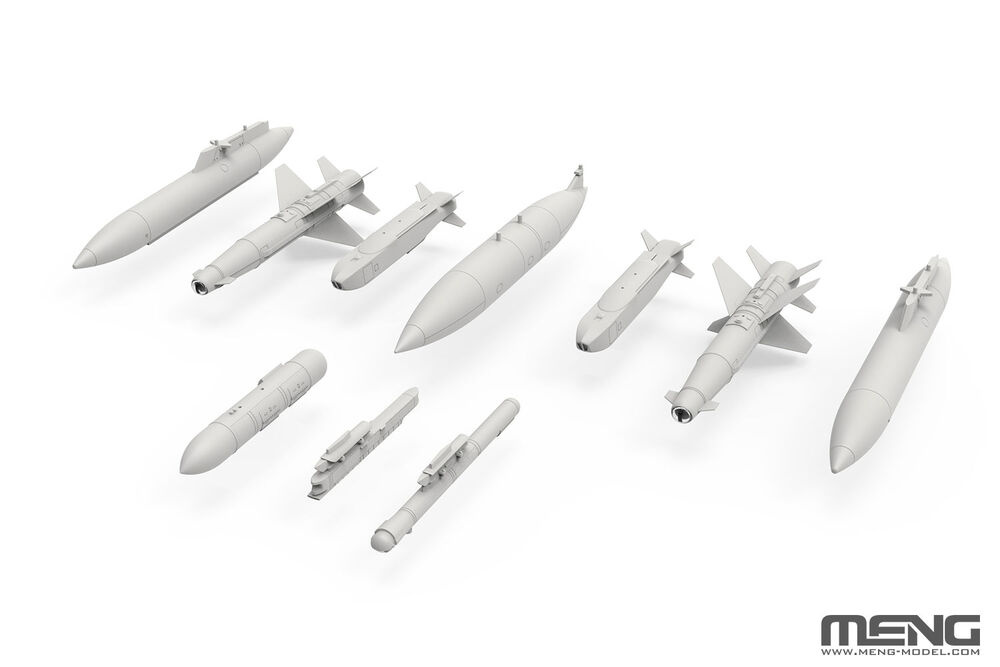

Additionally, they received AGM-142 Popeye/Have Nap integration, Litening-II targeting pods, and the capability to launch AGM-65D/G Maverick, AGM-88 HARM, GBU-8 HOBOS, GBU-10/12 Paveway II LGBs, general purpose and cluster bombs for air-to-ground missions, while retaining the capability to launch AIM-7 Sparrow and AIM-9 Sidewinder air-to-air missiles. It is also possible to install Pave Spike targeting pods and rocket pods of all sizes.

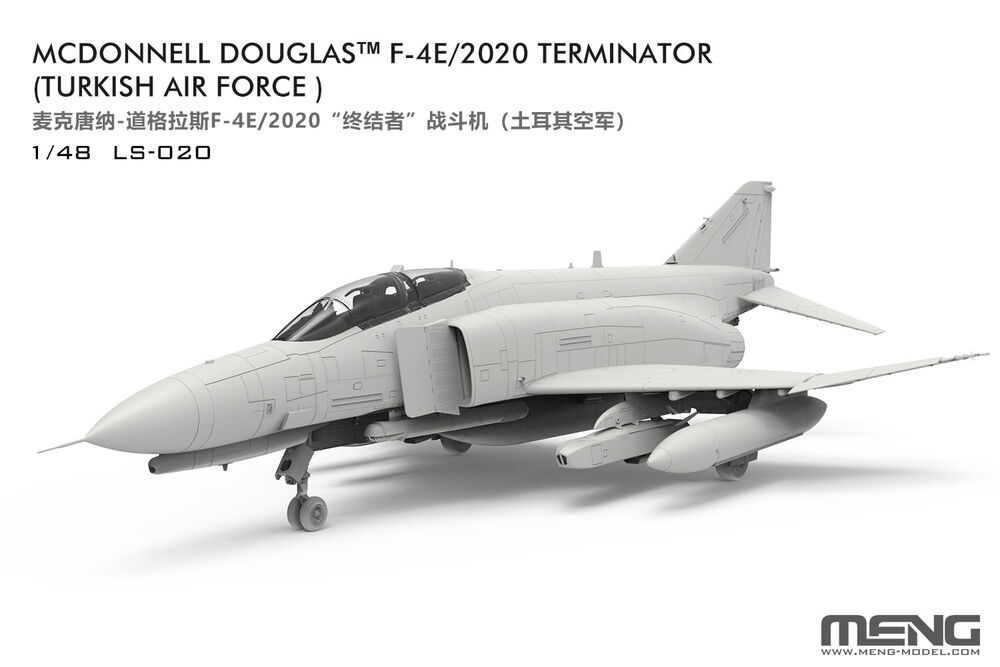

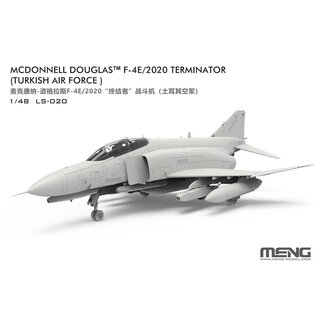

These upgraded F-4 Phantoms are referred to as the F-4E-2020 Terminator. Fifty-four were modernized and 30-plus of them will be in service until at least 2030. They first entered service on 27 January 2000 with deliveries to 111 and 171 Filo.
Quelle: Douglas F-4 Phantom II variants
